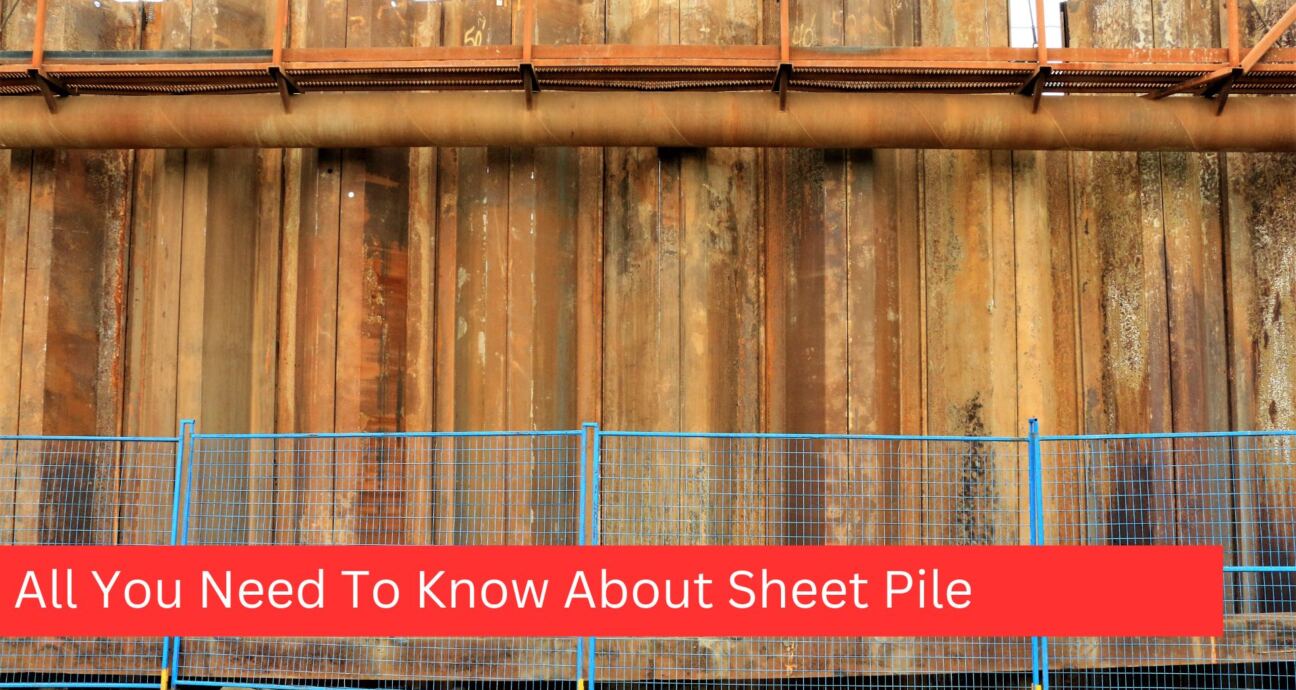

Sheet Pile Introduction

Beneath the concrete jungles and along the bustling shorelines of our cities lies a secret cadre of guardians – sheet piles. Unseen by the public eye, these slender giants of steel and vinyl work in silence, their interlocks a testament to modern engineering’s cunning. In the grand theater of construction, sheet pile take the stage not as the star, but as the steadfast support, ensuring the safety and integrity of our infrastructures. From the foundations of towering skyscrapers to the bulwarks that tame nature’s fury along our waters, the role of sheet piles in modern construction is both monumental and, until now, largely untold. As we peel back the layers of soil, let’s shine a light on these hidden heroes, exploring the art and science that make them the cornerstone of our built environment.


The Fundamentals of Sheet Piles

Sheet piles are an integral part of the construction and engineering world, serving as vertical, interlocking barriers that are driven into the ground to provide earth retention and excavation support. These barriers are pivotal in managing groundwater flow, providing structural support to prevent soil collapse around construction sites, and safeguarding against erosion in waterfront developments. Let’s delve into the types of sheet piles and explore their specific applications and advantages, guided by standards set by the American Society of Civil Engineers (ASCE) and Eurocodes.

Types of Sheet Piles

Sheet piles are primarily categorized into three materials: timber, reinforced concrete, and steel. Each type comes with its unique set of applications and benefits, tailored to meet the demands of various construction environments.


Timber Sheet Pile

Timber piles are one of the oldest forms of sheet piling, often used for temporary structures or in situations where the piles can be removed and reused. According to the ASCE, timber sheet piles are best suited for low-height structures and where the soil is soft and waterlogged. Their primary advantage lies in their cost-effectiveness and ease of handling. However, their lifespan is limited, especially in marine environments where they are susceptible to biological degradation.



Reinforced Concrete Sheet Pile

Reinforced concrete sheet piles are known for their high strength and durability. The Eurocodes specify their use in permanent structures, where long-term resistance against chemical, biological, and physical degradation is crucial. These piles are often employed in the construction of docks, seawalls, and permanent retaining walls. Their main advantages include their robustness, longevity, and ability to withstand significant load and pressure. However, they are heavier and require more complex logistics for transportation and installation compared to timber and steel piles.



Steel Sheet Pile

Steel sheet piles are favored for their high strength-to-weight ratio, versatility, and speed of installation. They are extensively referenced in both ASCE guidelines and Eurocodes for a wide range of applications, including temporary and permanent earth retention systems, cofferdams, and flood defense structures. Steel piles can be driven into a variety of soil types and can achieve greater depths than timber or concrete piles. Their advantages include the ability to be reused or recycled, ease of installation, and excellent performance in resisting bending forces. However, they may require corrosion protection measures in aggressive environments.

Materials Used for Sheet Piles

The predominant material used for sheet piles is steel, valued for its exceptional durability and strength. Steel sheet piles offer significant resistance against environmental stressors, including corrosion and physical wear, making them suitable for both temporary and permanent structures. The sustainability of steel as a material is enhanced by its capacity for recycling, aligning with modern eco-friendly construction practices. Recycled steel retains the inherent strength characteristics of virgin steel, making it an environmentally and structurally sound choice for sheet pile manufacturing.

For detailed specifications, leading manufacturers provide comprehensive datasheets on their products. For example, ArcelorMittal‘s steel sheet piles offer insights into the dimensions, strength, and engineering properties of their range, catering to various engineering demands.


Engineering Principles and Installation Methods

The engineering design of sheet piles takes into account the geotechnical characteristics of the site, the hydrostatic pressures, and the load-bearing requirements of the project. The interlocking mechanism of sheet piles forms a continuous wall, crucial for water retention or soil reinforcement. The design process involves calculating the bending moments and shear forces to ensure the sheet pile wall can withstand the anticipated loads.

Installation of sheet piles predominantly employs two methods: driving and hydraulic pressing. Driving is the traditional method, where vibratory hammers or impact hammers are used to drive the piles into the ground. This method is effective in a wide range of soil conditions and is preferred for its speed and efficiency. Hydraulic pressing, on the other hand, involves pressing the piles into the ground without causing significant vibrations, making it ideal for sensitive environments where noise and vibrations must be minimized.


Successful Case Study on Sheet Pile: The Malacca River Beautification Project

Melaka River, Malacca: How To Reach, Best Time & Tips
The Malacca River Beautification project stands as a testament to the transformative power of sheet piles in urban renewal and environmental restoration efforts. Tasked with revitalizing the Malacca River, a cherished tourist hub in Malaysia, the project aimed to enhance the river’s aesthetic appeal and accessibility, thereby boosting its appeal to both local residents and international visitors.


Challenges and Innovative Solutions

Challenges: The project faced significant challenges, including the need to address unauthorized construction and rampant waste dumping that had marred the river’s beauty and ecological health. The overarching goal was not only to beautify the riverbanks but also to enable larger tourist boats to navigate the river, and to provide over 5km of uninterrupted pedestrian access along its edge. This required a comprehensive cleanup of the river, the installation of new sewage lines, and an extensive public education campaign to prevent future pollution.

Solutions: 3,000 tons of sheet piles were used to securing the river’s banks and providing the necessary infrastructure for the beautification efforts. The project’s design accounted for a 50-year lifespan, incorporating both hot-dip galvanized and coal tar epoxy-coated sheet piles to ensure durability and resistance to the elements. The sheet piles served primarily as an aesthetic enhancement along the riverfront, with the structural load supported by reinforced concrete piles. This approach allowed for the successful implementation of walkways and other amenities without imposing additional stress on the sheet piling system.

The Malacca River Beautification project exemplifies the effective use of sheet piles in urban infrastructure projects. By addressing both aesthetic and structural needs, the project has significantly enhanced the river’s role as a cultural and recreational asset for the city of Malacca. This case study underscores the importance of thoughtful engineering and collaborative problem-solving in achieving sustainable urban development goals.



Standards and References

The American Society of Civil Engineers (ASCE) and Eurocodes provide comprehensive guidelines on the design, installation, and application of sheet piles. ASCE’s “Manual of Practice No. 108” offers detailed insights into the engineering and design of sheet pile walls, emphasizing the importance of understanding soil mechanics and structural integrity. Similarly, Eurocode 7 (EN 1997-1), “Geotechnical Design,” along with Eurocode 3 (EN 1993-5), “Design of Steel Structures – Part 5: Piling,” set out the criteria for the design and application of sheet piles in Europe, ensuring that structures are safe, reliable, and environmentally conscious.

By adhering to these standards, engineers and construction professionals can ensure that sheet pile installations are optimized for their specific applications, providing the necessary support and protection for a wide range of construction projects. Whether it’s the natural warmth and flexibility of timber, the enduring strength of reinforced concrete, or the versatile efficiency of steel, sheet piles remain a fundamental component in the construction industry’s toolkit.


FAQ

Q1: What are sheet piles used for in construction?

Sheet piles are used to provide earth retention and excavation support, manage groundwater flow, prevent soil collapse around construction sites, and protect waterfront developments from erosion. They are essential in constructing retaining walls, cofferdams, and flood defense structures.

Q2: What materials are sheet piles made from, and how do I choose the right one?

Sheet piles are primarily made from timber, reinforced concrete, and steel. The choice depends on the project’s requirements: timber is cost-effective for temporary structures, reinforced concrete is suited for permanent applications requiring durability, and steel is preferred for its strength-to-weight ratio and versatility. Consider the environmental conditions, project duration, and structural needs when choosing.

Q3: How are sheet piles installed?

A3: Sheet piles can be installed using driving or hydraulic pressing methods. Driving involves using vibratory or impact hammers to drive the piles into the ground, suitable for a wide range of soil conditions. Hydraulic pressing, which presses the piles into the ground without significant vibrations, is ideal for sensitive environments. The choice of method depends on the site conditions and project requirements.

Q4: Can sheet piles be reused or recycled?

Yes, steel sheet piles, in particular, can be reused in other projects or recycled at the end of their service life, making them an environmentally friendly option. Reusing and recycling sheet piles align with sustainable construction practices by reducing waste and conserving resources.

Q5: What are the key considerations in the engineering design of sheet pile walls?

The engineering design of sheet pile walls involves considering the geotechnical characteristics of the site, hydrostatic pressures, load-bearing requirements, and the interlocking mechanism’s integrity. Calculating the bending moments and shear forces is crucial to ensure the wall can withstand the anticipated loads. Adherence to relevant standards and guidelines, such as those from the ASCE or Eurocodes, is essential for safe and effective design.

Q6: How do I ensure the longevity of sheet pile installations?

Ensuring the longevity of sheet pile installations involves choosing the right material for the environmental conditions, applying appropriate corrosion protection measures (such as coatings for steel piles), and conducting regular inspections and maintenance. For projects in aggressive environments, consider additional protective measures like cathodic protection.
